HPMX-5002
IF amplifier/demodulator IC for 1.5-2.5 GHz chipset

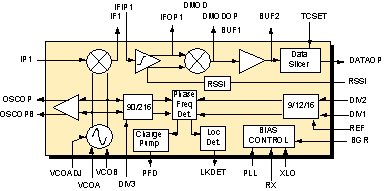

HPMX-5002 schematic
data sheet
pdf pdf
package
pkg dwg
[TQFP-48]

>75 dB RSSI range
Internal data slicer; 0.3V max logic "0", Vccx-0.3V min logic "1"

Total supply current
 RX mode:27 mA max, 21 mA typ
 PLL mode:20 mA max, 16 mA typ
 TX flywheel mode:11.5 mA max, 9 mA typ
 Standby mode:100 microamps max

Mixer power gain from IP1 to IF1, external load impedance of 600 ohms: 8 dB typ
On-chip LO generation, including VCO, prescalers, and phase/frequency detector
Supports reference crystal frequencies of 9, 12, and 16 times the DECT bit rate of 1.152 MHz
IF input frequency range up to 250 MHz

Applications Literature[ top ]
The following literature archives contain information that may make use of this product easier:
  General Information about RFICs [link to applications library]
  Information about Chipsets and Other RFICs [link to applications library]
  Assembly Information [link to applications library]

Demonstration Circuit Boards[ top ]
The following demonstration circuits may aid in the evaluation of this product:
  HPMX-5002 1900 or 2400 MHz
IF amplifier / demodulator
[link to demo board info]
