DRR1-38xx Series
Digital radio receiver modules designed for medium data rate
point-to-point communication systems operating at 38 GHz.

Reference Information Only - this product is now obsolete

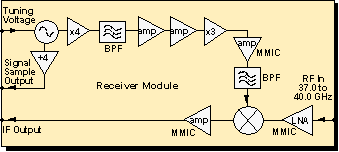

DRR1-381x schematic

part number

frequency

IF

connectors

data sheet

DRR1-3813 37 - 40 GHz 630 MHz WR-28 pdf
61k
DRR1-3823 37 - 40 GHz 1260 MHz WR-28 pdf
61k


excellent phase noise from silicon bipolar S/C band VCO
easily phase-locked to a frequency reference from low frequency VCO output tap
ideal for 2 and 4 level FSK modulation
PHEMT front end for low NF
630 or 1260 MHz IF frequency options

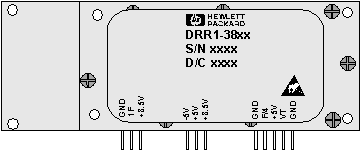

case dimensions:
3.50 x 1.25 x 0.40 inches
package


Performance Parameters


DRR1-38xx
specification

units

min

typ

max

Extended Range
39.5 - 40.0
RF tuning range
GHz
37

39.5
40
IF Frequency
MHz
630 or 1260
IF Bandwidth
MHz
+20



LO Frequency
GHz
RF - IF
Gain
dB
18

27
16 min
Gain Flatness over 300 MHz
dB


+1
+1.5
Noise Figure
dB

7.5
9
9.5 max
Power Input at P 1dB
dBm
-20
-17


LO Leakage at I
dBm


-15

LO Leakage at R
dBm


-15

Return Loss RF Port
dB
8
10

5 min
Return Loss IF Port
dB
14



Image Rejection
dB
10
13


Sample Out Frequency
MHz
1010

1080
1094
Sample Out Power
dBm
-10

0

Spurious Output
dBc


-60

Phase Noise at 100 kHz
dBc/Hz

-83
-80

Tuning Voltage
V
1

12
15 max
Input Capacitance, nom.
pF

1000


LO Tuning Sensitivity
MHz/V

400
500

Sensitivity variation


1.5:1


DC Circuit Power
   +8.5 Volts
   +5 Volts
   -5 Volts

mA
mA
mA


270
470
20

350
650
30

Max Power at Input / No Damage
dBm


7

Operating Temperature Range
C
-30

70

Humidity Non Condensing
%

85


Humidity Condensing
%

95



Applications Literature[ top ]
The following literature archives contain information that may make use of this product easier:
  Digital Radio Modules [link to applications library]
