DRR1-23xx Series
Digital radio receiver modules designed for medium data rate
point-to-point communication systems operating at 23 GHz.

Reference Information Only - this product is now obsolete

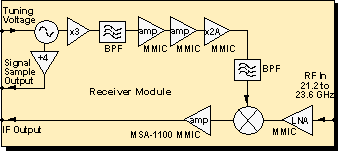

DRR1-231x schematic

part number

frequency

IF

connectors

data sheet

DRR1-2311 21.2 - 23.6 GHz 630 MHz SMA pdf
60k
DRR1-2321 21.2 - 23.6 GHz 630 MHz WR-42 pdf
60k
DRR1-2312 21.2-23.6 GHz 1260 MHz SMA pdf
60k
DRR1-2322 21.2-23.6 GHz 1260 MHz WR-42 pdf
60k


excellent phase noise from silicon bipolar S/C band VCO
easily phase-locked to a frequency reference from low frequency VCO output tap
+3 dBm output power, ideal for 2 and 4 level FSK modulation
PHEMT front end for low NF
waveguide and SMA connector options
630 or 1260 MHz IF frequency options

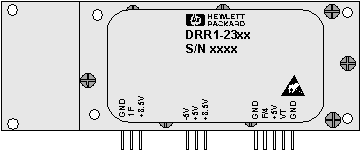

case dimensions:
3.50 x 1.25 x 0.40 inches
package


Performance Parameters


DRR1-23xx
specification

units

min

typ

max

RF tuning range
GHz
21.2

23.6
IF Frequency
MHz
630 or 1260
IF Bandwidth
MHz
+20


LO Frequency
GHz
20.57
or 19.94

22.97
or22.34
Gain
dB
18

26
Gain Flatness over 300 MHz
dB


+1
Noise Figure
dB

4.5
5.5
Power Input at P 1dB
dBm
-22
-17

LO Leakage at I
dBm


-15
LO Leakage at R
dBm


-15
Return Loss RF Port
dB
12


Return Loss IF Port
dB
14


Image Rejection
dB
12
15

Sample Out Frequency
MHz
857
or 831

957
or931
Sample Out Power
dBm
-10

0
Spurious Output
dc

 0
-60
Phase Noise at 100 kHz
dBc/Hz

-85
-82
Tuning Voltage
V
1

12
Input Capacitance, nom.
pF

1000

LO Tuning Sensitivity
MHz/V

300
500
Sensitivity variation


1.5:1
2.0:1
DC Circuit Power
   +8.5 Volts
   +5 Volts
   -5 Volts

mA
mA
mA



300
400
30
Max Power at Input / No Damage
dBm


10
Operating Temperature Range
C
-30

70
Humidity Non Condensing
%

85

Humidity Condensing
%

95


Applications Literature[ top ]
The following literature archives contain information that may make use of this product easier:
  Digital Radio Modules [link to applications library]
